5 Advanced Tips for Managing Metalworking Lathe Speeds

Ever get pulled over for driving too fast? You might explain to the officer that your car handles better at higher speeds, but that probably won’t get you out of a ticket. Metalworking lathes operate under similar rules. Push your spindle speed too far, and you could pay the price with premature tool wear, poor surface finishes, excessive heat, or even damaged workpieces. Run too slowly, however, and you might waste valuable production time.

Experienced lathe operators know that choosing the right speed involves more than checking a chart for the workpiece material. Here are five advanced techniques that help operators fine-tune spindle speeds, improve machining performance, and keep production running efficiently.

1. Use Cutting Force and Spindle Load to Fine-Tune Speeds

Don’t rely exclusively on recommended cutting speeds. Monitor spindle load and cutting forces during machining to identify opportunities for improvement.

When spindle load rises unexpectedly, the tool might encounter inconsistent material hardness, excessive chip accumulation, or changing cutting conditions. Operators can use load-monitoring data to adjust spindle speed or feed rates before excessive heat or tool wear affects production.

Pro tip: Record spindle-load trends alongside tool life and surface-finish measurements. Over time, these records can reveal productive operating ranges for specific jobs.

2. Identify and Eliminate Chatter Before Increasing Speed

Chatter can ruin surface finishes, shorten tool life, and damage machine components. Simply reducing spindle speed might eliminate the problem, but advanced operators can take a more strategic approach.

Test different spindle speeds to identify stable operating ranges. These ranges, sometimes called stability lobes, depend on factors such as tool geometry, workpiece rigidity, tool overhang, and machine dynamics.

On CNC lathes, operators can use controlled spindle-speed variation to disrupt regenerative chatter. This technique continuously varies spindle speed within a defined range, helping prevent vibrations from reinforcing themselves.

3. Compensate for Changing Surface Speeds

When turning a workpiece, the cutting speed depends on both spindle RPM and the diameter under the cutting tool. As the tool moves toward the center of a part, the cutting diameter decreases.

Constant surface speed (CSS) control on CNC lathes automatically adjusts spindle RPM to maintain a target cutting speed as the diameter changes.

This approach helps maintain more consistent cutting conditions across different diameters. However, operators must set appropriate spindle-speed limits to prevent excessive RPM when machining near the center of a workpiece.

4. Adjust Speeds Based on Tool Wear and Cutting Temperature

Tool wear changes cutting conditions throughout a production run. A speed that works well with a fresh insert might generate excessive heat after the cutting edge begins to deteriorate.

Track tool life alongside cutting temperature, chip formation, surface finish, and dimensional accuracy. Use these measurements to establish practical speed adjustments as the tool wears.

Infrared temperature sensors and machine-monitoring systems can provide additional insight into thermal behavior, particularly during demanding production runs.

5. Optimize Speeds Through Controlled Production Testing

Theoretical recommendations provide a starting point, but actual machine performance determines the best production settings. Run controlled trials that vary spindle speed while keeping other cutting parameters consistent. Measure cycle time, tool life, surface finish, dimensional accuracy, and energy consumption.

Then, evaluate the results against total production cost, not cycle time alone. A modest speed reduction might extend insert life enough to lower overall cost per part. Conversely, a carefully validated speed increase might improve throughput without sacrificing quality.

Stay Ahead of the Speed Limit

Managing lathe speeds requires more than following a chart or turning up the RPM. By monitoring machine loads, controlling vibration, maintaining consistent surface speeds, tracking tool wear, and testing production settings, operators can find the sweet spot between speed and efficiency.

The goal isn’t to machine as fast as possible. It’s to machine as efficiently as possible without getting a ticket from your quality-control department.

Contact your LeBlond lathe representative to learn more about the optimal speed for your project or application.



Extend the useful life of these essential parts

The lead screw and cross-feed screw are two of the most important mechanical parts on a LeBlond manual metalworking lathe. Both LeBlond lathe parts receive years of repetitive movement, cutting forces, chips, dirt, and potentially inadequate lubrication. When these components begin to wear, the effects show up as backlash, inconsistent dimensions, poor surface finish, and difficulty controlling the cut. Proper maintenance significantly extends the useful life of both screws and helps LeBlond engine lathes maintain accuracy.

Understanding the Lead Screw and Cross-Feed Screw

The lead screw primarily controls the carriage during threading operations. It also provides controlled longitudinal movement when the half nuts are engaged, depending on the lathe design. The cross-feed screw moves the cross slide toward and away from the workpiece. It allows the operator to precisely control cutting depth and is used continuously during many turning and facing operations. Both components require regular inspection and lubrication because the cross-feed screw positions and cuts a workpiece, while the lead screw experiences substantial wear during threading and power-feed operations.

Common Lead Screw and Cross-Feed Screw Failures

1. Thread Wear
   Repeated contact between the screw and its mating nut gradually wears the threads. Wear can be accelerated by inadequate lubrication, contamination, excessive cutting forces, or years of heavy use. Lead-screw wear can become especially noticeable in the areas of the screw that receive the most use. Cross-feed screws can develop similar wear in the portions of the screw that are used most frequently.
2. Excessive Backlash
   Backlash occurs when there is excessive clearance between the screw and its mating nut.

   Some backlash is normal on an older machine, but excessive or increasing backlash can make it difficult to accurately position the cutting tool. Symptoms of excessive backlash include the handwheel turns a significant distance before the slide or carriage begins to move in the opposite direction.
3. Damaged or Contaminated Threads
   Chips and abrasive material can become embedded in the lubricant or threads. A damaged thread causes tight spots, inconsistent movement, or accelerated wear. Cross-feed screws are particularly vulnerable because they are located close to the cutting zone and exposed to chips and cutting fluid.
4. Bent or Misaligned Screws
   A lead screw or cross-feed screw becomes bent from an accident, excessive force, improper assembly, or a machine crash. A bent screw creates a noticeable variation in resistance as the handwheel rotates. Movement feels smooth through one portion of the rotation and tight through another.
5. Worn or Damaged Nuts
   The screw itself isn’t always the problem. The mating nut can wear significantly and contribute to backlash. Depending on the lathe design, replacing or rebuilding the nut restores acceptable performance without replacing the entire screw.

Warning Signs That Replacement or Repair May Be Necessary

LeBlond lathe operators should pay attention to changes in the machine’s normal behavior.

Common warning signs

• Increasing backlash
• Inconsistent carriage or cross-slide movement
• Difficulty maintaining dimensions
• A handwheel feels tight or loose at different positions
• Visible damage or excessive wear on screw threads
• Unusual noise during movement
• Difficulty engaging or disengaging the half nuts
• Poor threading accuracy
• Inconsistent carriage or cross slide movement
• Excessive vibration during powered movement
• A noticeable change in accuracy between different areas of travel

One important point is that backlash does not automatically mean the screw needs to be replaced. The screw, nut, gib adjustment, thrust bearings, or other components may contribute to the problem. Proper diagnosis identifies the actual source of the wear. Identifying what causes lead screw and cross-feed screw failures is only half the battle. Our next post deals with how to mitigate all of the most common points of failure. Click to contact Leblond

Know which mandrel is right for each application

In precision machining, workholdings are every bit as important as the cutting tool itself. Even the most accurate CNC lathe cannot produce high-quality parts if the workpiece isn’t held securely and concentrically. That’s why selecting the right mandrel is essential for maximizing accuracy, reducing setup time, and improving surface finish. Mandrels are designed to support or hold a workpiece from its inside diameter, allowing the outside diameter or face to be machined with excellent concentricity. Choosing the correct mandrel depends on the material, production volume, tolerance requirements, and the geometry of the part.

Solid Mandrels

Solid mandrels are the simplest option and are commonly used for finishing operations where extremely tight concentricity is required. The workpiece is slipped onto a precision-ground shaft with minimal clearance. Best applications include:

• Finish grinding
• Precision turning
• Inspection operations
• Low-volume production

Because there are no moving components, solid mandrels provide exceptional rigidity and repeatability. However, they require parts with very consistent bore diameters and are generally limited to one specific size.

Expanding Mandrels

Expanding mandrels use a mechanical or hydraulic expansion mechanism to grip the inside diameter of the workpiece evenly. These are among the most versatile workholding solutions in modern machine shops. Best applications include:

• Precision CNC turning
• Multi-operation machining
• Thin-wall components
• Medium- to high-volume production

Expanding mandrels distribute clamping force evenly around the bore, minimizing distortion while maintaining excellent concentricity. They also accommodate slight variations in bore size, making them ideal for production environments.

Taper Mandrels

Taper mandrels rely on a slight taper to create a friction fit between the mandrel and the workpiece. Best applications include:

• Bushings
• Bearings
• Gears
• Short production runs

These economical and easy-to-use mandrels require careful installation to minimize excessive force that occasionally distorts the workpiece. Taper Mandrels are an excellent choice when machinists want quick setups over rapid part changes.

Collet Mandrels

Collet mandrels combine the precision of collet workholding with internal gripping capabilities. The collet expands uniformly to hold the workpiece while maintaining excellent runout characteristics. Best applications include:

• High-precision components
• Medical parts
• Aerospace components
• Swiss machining

Because the gripping force is highly concentric, collet mandrels produce outstanding surface finishes while reducing vibration during cutting.

Hydraulic Mandrels

Hydraulic mandrels use pressurized hydraulic fluid to expand a sleeve that grips the workpiece uniformly. Best applications include:

• Ultra-precision machining
• High-value components
• Aerospace
• Automotive transmission parts

Their uniform clamping pressure minimizes part distortion and delivers exceptional repeatability. Although they represent a larger investment, hydraulic mandrels often pay for themselves in reduced scrap, longer tool life, and improved process capability.

Between-Center Mandrels

When maximum concentricity between multiple machining operations is required, between-center mandrels remain a proven solution. Best applications include:

• Shaft components
• Gears
• Grinding operations
• Parts requiring multiple setups

By locating the part between machine centers, these mandrels maintain alignment throughout successive operations and are commonly used in precision grinding applications.

Factors to Consider Before Choosing a Mandrel

Before selecting a mandrel, evaluate these key considerations:

• Bore tolerance: Tight, consistent bores can use solid mandrels, while variable bores often benefit from expanding designs.
• Production volume: Manual setups work well for prototypes and short runs, while expanding or hydraulic mandrels improve efficiency in production.
• Wall thickness: Thin-walled parts require uniform clamping pressure to prevent distortion.
• Required concentricity: Precision applications demand workholding solutions that minimize runout.
• Material: Softer materials such as aluminum require gentler clamping than hardened steels.
• Cycle time: Fast-loading mandrels reduce setup time and improve machine utilization.

Matching the Mandrel to the Job

There is no universal mandrel that’s ideal for every application. A simple solid mandrel may deliver unmatched accuracy for a finishing operation, while an expanding mandrel may dramatically improve productivity on a CNC production line. Hydraulic systems excel when precision and repeatability are key but collet mandrels offer exceptional performance for high-tolerance components. Selecting the right mandrel allows machinists to reduce setup time, improve part quality, extend tool life, and increase machine efficiency. By matching the workholding method to the specific demands of the application, manufacturers can consistently achieve tighter tolerances, better surface finishes, and more reliable production results. Contact us for help selecting or finding the right mandrel

Top 5 Pro Tips for Maintaining Your Metalworking Lathe’s Coolant System

In today’s precision machining environment, coolant does much more than keep cutting tools cool. A properly maintained coolant system improves surface finish, extends tool life, enhances chip evacuation, and helps maintain the tight dimensional tolerances that customers expect. Unfortunately, many machine shops only pay attention to coolant systems after problems begin to appear.

Preventive maintenance of your lathe’s coolant system is one of the simplest ways to improve productivity while reducing costly downtime. Here are five professional maintenance best practices to help keep your lathe operating at peak performance.



1. Keep Coolant Concentration Within Specification

Coolant concentration directly affects lubrication, cooling efficiency, and corrosion protection. If the mixture is too weak, tools wear prematurely and machine components become susceptible to rust. If it’s too strong, coolant costs increase and residue may build up on parts and tooling.

Use a refractometer to verify coolant concentration on a regular schedule. Weekly checks are common for most shops and daily for high-volume production. Always follow the coolant manufacturer’s recommended mixture ratio and remember the golden rule of coolant mixing: add concentrate to water, never water to concentrate. Using clean or treated water can also reduce mineral deposits and improve coolant performance.

2. Eliminate Chips and Contaminants Before They Become Problems

Metal chips, grinding dust, and tramp oil all reduce coolant effectiveness. As contaminants circulate through the system, they can accelerate pump wear, clog nozzles, and increase tool wear while negatively affecting surface finish. Regularly empty chip conveyors, clean basket strainers, and inspect filters before they become restricted. For shops machining ferrous materials, magnetic separators can remove fine steel particles, while oil skimmers help eliminate floating tramp oil from way lubricants and hydraulic systems. Keeping coolant clean allows it to perform its primary job of cooling and lubricating the cutting zone.

3. Verify Coolant Flows to the Cutting Edge

Even perfectly mixed coolant cannot do its job if it isn’t reaching the cutting tool. Inspect coolant pumps for reduced pressure, worn impellers, clogged suction screens, or leaking connections. Just as importantly, verify coolant nozzles aim directly at the cutting edge where heat is generated. Proper coolant delivery improves chip evacuation, reduces cutting temperatures, minimizes built-up edge, and contributes to better dimensional consistency throughout production runs.

4. Prevent Bacteria and Coolant Breakdown

Coolant naturally degrades over time, particularly when contaminated with tramp oil or left stagnant for extended periods. Warning signs include unpleasant odors, excessive foam, discoloration, or slimy residue in the coolant tank. Removing tramp oil regularly, maintaining coolant circulation, and thoroughly cleaning the sump before replacing coolant all help extend coolant life. Preventing bacterial growth not only creates a healthier work environment but also reduces coolant replacement costs and improves machining consistency.

5. Inspect the Entire Coolant Delivery System

A coolant system is much more than a reservoir and pump. Flexible hoses, fittings, valves, filters, nozzles, seals, and high-pressure coolant units all play important roles in delivering coolant where it is needed. Inspect these components for leaks, cracks, corrosion, loose fittings, or restricted flow during routine preventative maintenance. Addressing small issues before they become failures can prevent unplanned downtime and help keep production schedules on track.

One Simple Hack That Pays Big Dividends

Many high-performing machine shops maintain a coolant maintenance log. Recording coolant concentration, pH levels, filter changes, sump cleanings, and pump inspections helps identify trends before they become expensive repairs. This documentation also promotes consistency across multiple shifts and machines, ensuring every operator follows the same maintenance standards.

Keep Your Lathe Performing at Its Best

Your coolant system is one of the hardest-working systems on the machine, yet it’s often one of the most overlooked. By maintaining proper coolant concentration, keeping contaminants under control, ensuring consistent coolant flow, preventing biological contamination, and routinely inspecting the entire delivery system, you can significantly improve machining performance. The payoff is real: longer tool life, improved surface finishes, tighter dimensional accuracy, lower maintenance costs, and more reliable production. A proactive coolant maintenance program not only protects your machine, it helps maximize productivity and profitability on every job.

Contact your LeBlond lathe representative to learn more about proper lubrication to keep your lathe in great condition.



Top nine tips for best headstock performance

Checking the headstock lubrication system should be part of a regular preventive maintenance program for a professional lathe technician. A properly functioning lubrication system protects spindle bearings, gears, shafts, and other critical components from premature wear, overheating, and costly downtime. Any lathe operator benefits from following these top nine performance checks on their lathes.

1. Review the Machine Manual

Simply put, RTM – Read the Manual. Start by verifying the lubrication requirements. Check the recommended lubricant type and viscosity, oil capacity, lubrication points, operating pressure specifications, oil flow requirements and maintenance intervals. Different headstocks may use splash lubrication, forced-pressure lubrication, oil mist systems, and grease-packed spindle bearings. The manual provides all the basic details needed to maintain the headstock.

2. Inspect Oil Levels

Before starting the machine, check the sight glass or oil level indicator. Verify the oil level falls within the lathe’s specified range. Look for signs of contamination such as a milky appearance indicating water contamination, dark discoloration, any metal particles, or sludge buildup. These tell-tale signs indicate old, contaminated, or impure fluids. Low oil levels can quickly damage spindle bearings and gears if not replenished timely.

3. Verify Oil Circulation

Run the machine and confirm lubricant is circulating properly. Look for:

• Oil movement in sight-flow indicators
• Oil returning to the reservoir
• Visible oil splashing inside inspection windows
• Proper operation of lubrication pumps

A lack of visible oil flow may indicate clogged lines, a failed pump, blocked filter, or air trapped in the system.

4. Check Lubrication Pressure

For pressure-fed systems, observe pressure gauges while the machine operates. Compare these readings to the manufacturer specifications. Then, monitor for any pressure fluctuations. These indicators of low pressure are often a result of a worn pump, internal leakage, restricted suction line or low oil levels. Take the necessary steps to evaluate the source of the pressure discrepancies.

5. Inspect Filters and Strainers

Dirty filters restrict oil flow. Check the oil filters, suction strainers, and magnetic plugs. Excessive metal debris, contamination, and clogged filter media indicated action is needed. Large metal particles may indicate gear or bearing wear inside the headstock. Clear any debris from the headstock regularly.

6. Monitor Headstock Temperature

Use an infrared thermometer or thermal camera after operating the lathe for a period of time. Compare temperatures at multiple locations around the headstock. Watch for localized hot spots. Elevated temperatures often indicate insufficient lubrication, bearing wear excessive preload, or oil flow restrictions. Burnt odors are an indication of increased temperatures. Pause operation and evaluate the source.

7. Listen for Unusual Sounds

An improperly lubricated headstock may throw a variety of noises. Watch for growling bearing, whining gears, clicking noises, and increased vibration. Changes in sound often appear before major failures occur.

8. Check for Oil Leaks

Even minor leaks can eventually lower oil levels and starve bearings. Inspect shaft seals, sight glasses, fittings, oil lines, and pump connections before during and after operations. Address any signs of leakage immediately.

9. Perform Oil Analysis

For production machines, periodic oil analysis can identify problems before failures occur. Test for wear metals, water contamination, viscosity changes, oxidation, and additive depletion. Oil analysis often reveals bearing or gear wear months before a breakdown occurs.

Taking action after identifying any of the above headstock performance issues pays dividends if addressed early. Small problems left unattended create big issues later if unaddressed. Learn to identify the signs of headstock issues before, during, and after operating a lathe.

Contact your LeBlond lathe representative to find the right parts to keep your industrial manufacturing headstock machinery in great condition, or select your parts online here.



How Do Headstock and Tailstock Condition Affect Machining Operations?

Experienced lathe operators know the headstock and tailstock form the backbone of every turning operation. Their condition directly affects part quality, cycle times, and machine longevity. A well-maintained lathe not only produces more accurate parts but also reduces downtime and extends tooling life.

The headstock serves as the machine’s precision power center, housing the spindle, bearings, drive system, and lubrication components. Knowledgeable machinists regularly monitor spindle bearing temperatures and listen for unusual noises that may indicate wear or lubrication issues. They regularly check lubrication levels and inspect belts, pulleys, and drive components for signs of wear. Periodic spindle runout checks also identify developing issues before they affect part quality.

The tailstock plays an equally important role by supporting long workpieces and maintaining alignment during turning, drilling, and reaming operations. Tailstock quills should move smoothly without excessive play. Keep the quill clean and lubricated, inspect locking mechanisms for wear, and verify alignment with the spindle centerline regularly. Even slight misalignment can create taper, increase tool wear, and cause dimensional inconsistencies.

Six Efficiency Tips for Professional Operators

Beyond maintenance, experienced machinists can improve productivity through several best practices:

1. Verify the machine alignment before quality issues start to appear
2. Keep centers, collets, and workholding devices clean to prevent runout and improve setup repeatability
3. Warm up the spindle before tight-tolerance jobs to minimize thermal growth effects
4. Track spindle vibration, surface finish quality, and dimensional capability to identify problems early
5. Standardize setup procedures for recurring jobs to reduce changeover time and improve consistency
6. Use preventive maintenance checklists that operators can complete daily, weekly, and monthly.

Recommended Maintenance Schedule

Daily

• Clean chips from machine surfaces and ways
• Determine that lubrication systems are functioning properly
• Inspect coolant concentration and fluid levels
• Wipe and lubricate exposed tailstock and carriage surfaces

Weekly

• Check headstock oil levels and inspect for leaks
• Confirm tailstock alignment and locking performance
• Clean filters and coolant screens
• Inspect belts and drive components

Monthly

• Measure spindle runout
• Inspect spindle bearings for excessive heat or vibration
• Check machine leveling and alignment
• Examine gibs, leadscrews, and feed mechanisms for wear

Quarterly or Semi-Annually

• Conduct a full machine geometry inspection
• Replace worn seals, belts, and lubrication components as needed
• Analyze spindle vibration trends
• Verify machine accuracy using test cuts and precision measuring equipment

A professional lathe operator treats maintenance as part of the machining process rather than a separate task. Consistent attention to headstock performance, tailstock alignment, lubrication systems, and machine geometry helps ensure reliable production, tighter tolerances, longer tool life, and fewer unexpected interruptions on the shop floor.

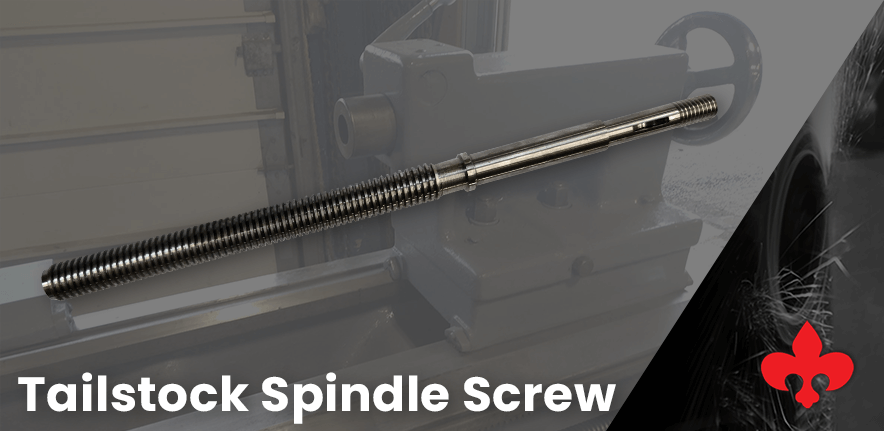

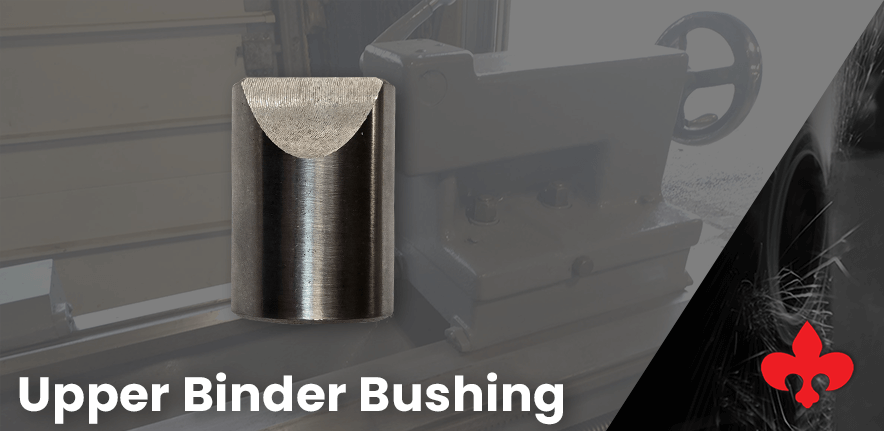

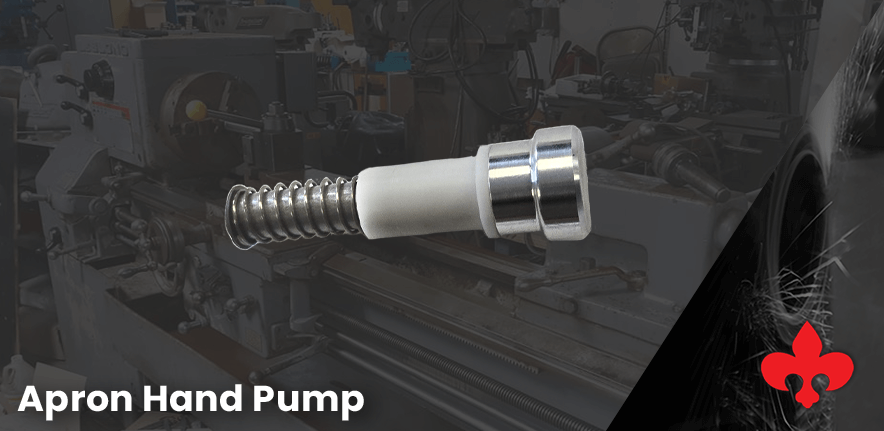

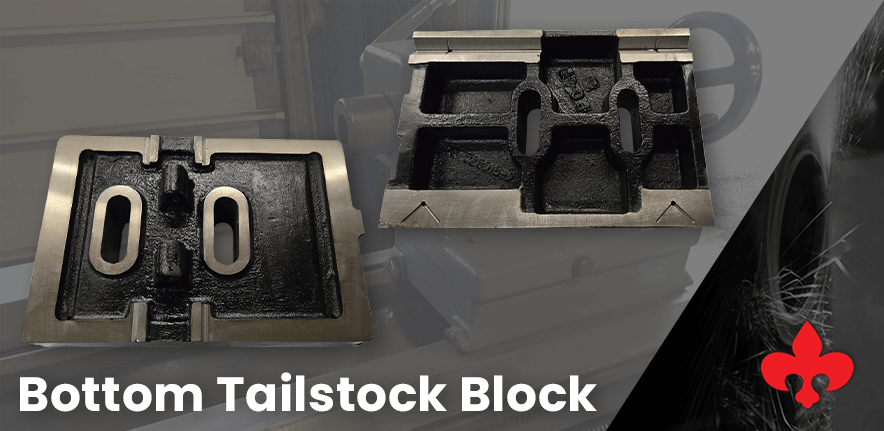

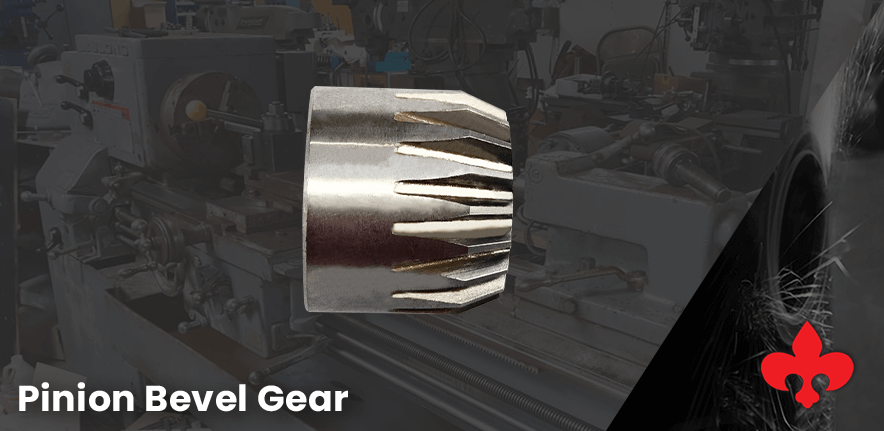

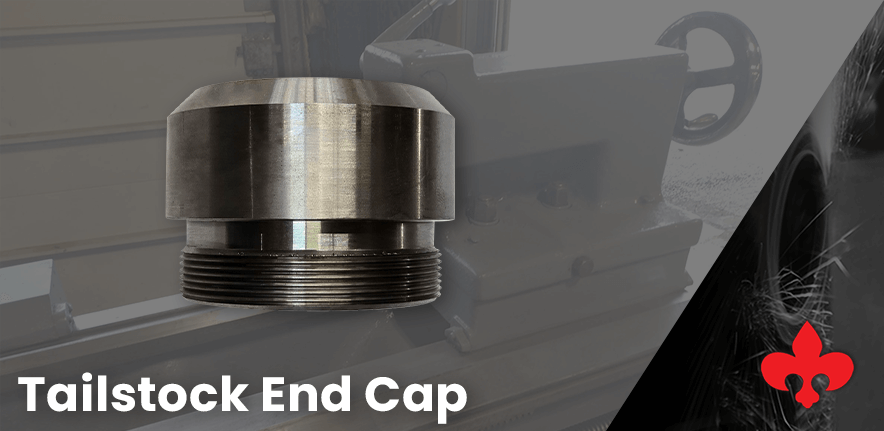

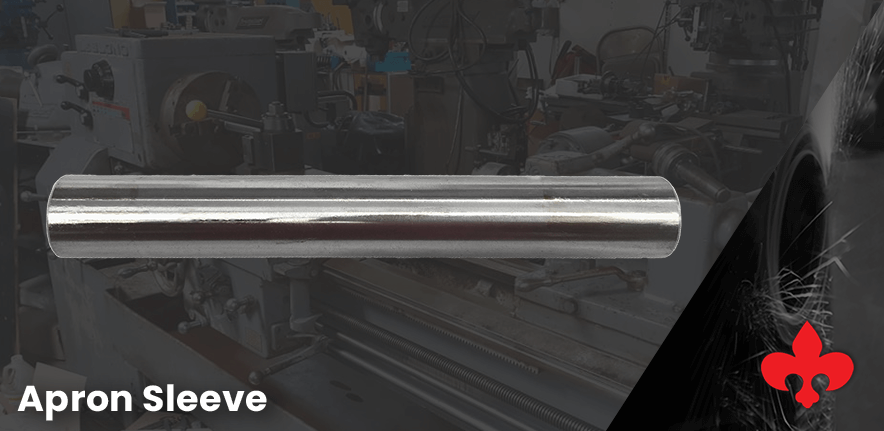

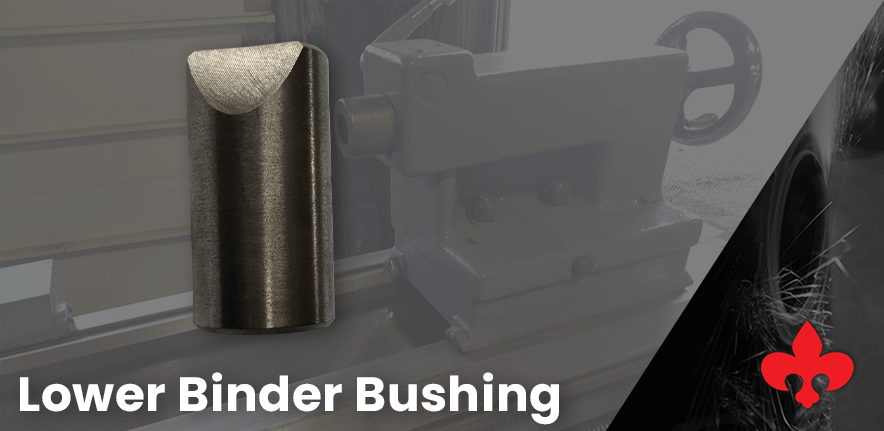

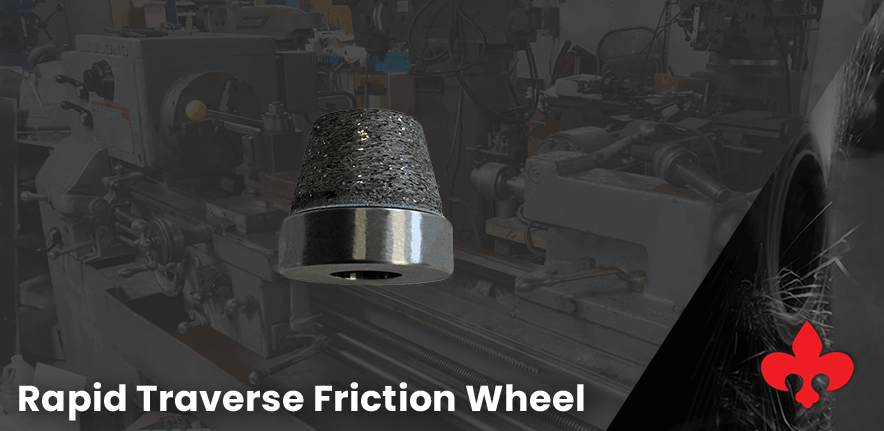

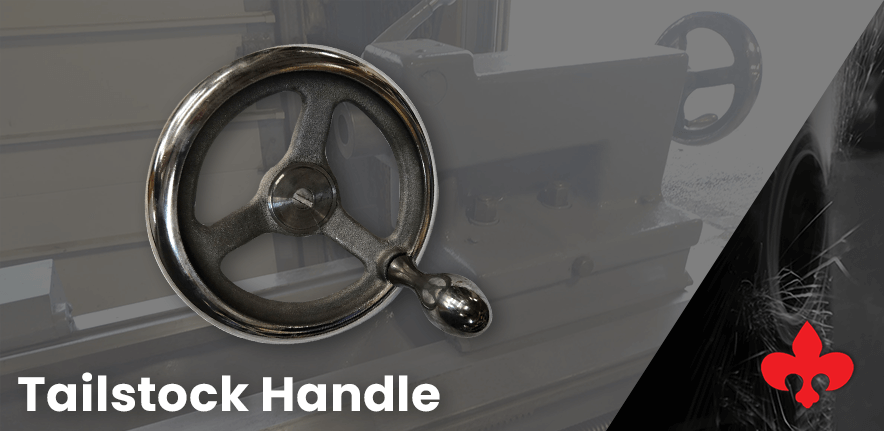

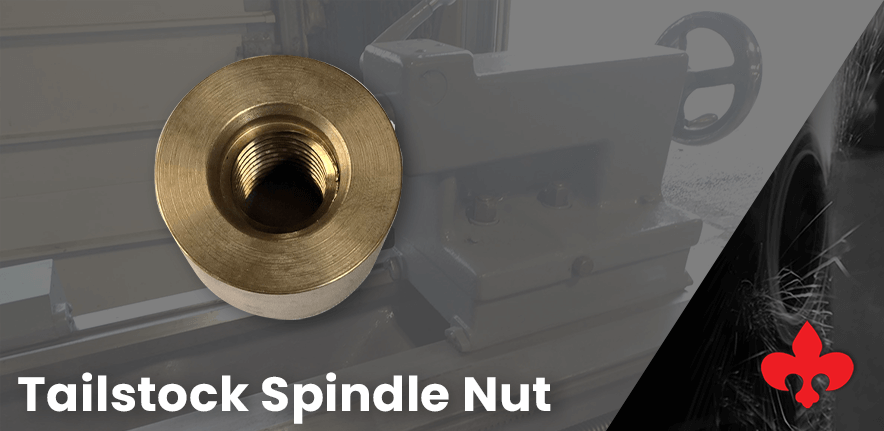

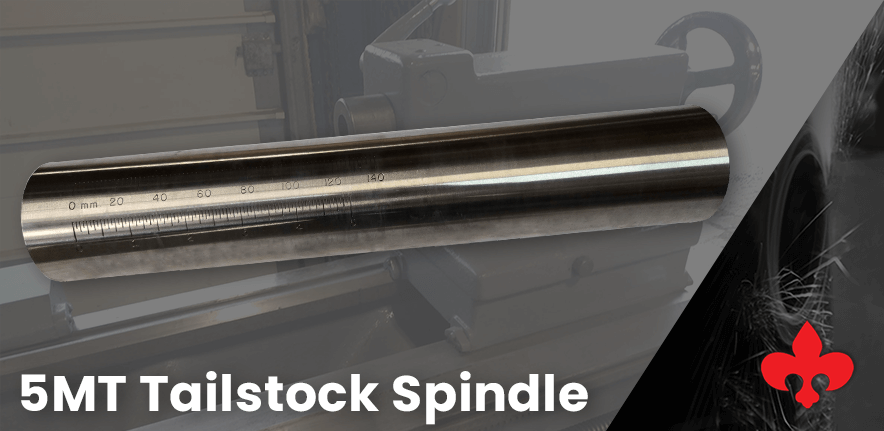

Contact your LeBlond lathe representative to find the right parts to keep your headstock and tailstock in great condition.
